VisionTradeFutures Connection Guide to NinjaTrader 8

Quick answer

Yes. Install PropFirmConnector, select Rithmic Paper Trading (Chicago) for System, and sign in with the Rithmic credentials issued by VisionTradeFutures.

Account feed: Rithmic System: Rithmic Paper Trading (Chicago) Last verified:

This guide covers how to connect VisionTradeFutures Rithmic accounts to NinjaTrader. PropFirmConnector is an independent third-party add-on and is not affiliated with or endorsed by VisionTradeFutures, NinjaTrader, or Rithmic.

Start the setup Account downloads
Step-by-step setup

VisionTradeFutures Connection Guide to NinjaTrader 8

  1. Step 1 One-time activation

    Log in to R|Trader Pro once

    Sign in to R|Trader Pro with the Rithmic credentials issued by VisionTradeFutures. Accept any pending market-data agreements and confirm the expected trading accounts appear. This is a one-time activation check; you do not need to open R|Trader Pro every time you start NinjaTrader.

  2. Step 2

    Install PropFirmConnector

    From your PropFirmConnector account, download PropFirmConnector.zip and close NinjaTrader completely. Extract the ZIP, then copy NinjaTrader.Custom-pfc.dll to My Documents\NinjaTrader 8\bin\Custom. Start NinjaTrader again and, when your browser opens, click Activate this device.

    Copy the DLL to My Documents\NinjaTrader 8\bin\Custom
    Open your account downloads
  3. Step 3

    Open NinjaTrader 8 and sign in

    Start NinjaTrader 8 and sign in with your NinjaTrader account credentials when prompted. These are your NinjaTrader credentials, not the Rithmic username and password issued by VisionTradeFutures.

  4. Step 4

    Configure Rithmic for VisionTradeFutures

    In the NinjaTrader Control Center, select Connections, then configure. Select Rithmic for NinjaTrader Brokerage from the Available list on the left, enter the Rithmic username and password issued by VisionTradeFutures, give the connection a recognizable name, leave Connect on start up and Plug-in mode off, and select Rithmic Paper Trading (Chicago) for System.

    In the Control Center, click Connections, then configure.
    Use these connection settings
    Connection type
    Rithmic for NinjaTrader Brokerage
    Connection name
    Any name you recognize, such as VisionTradeFutures
    User name and password
    The Rithmic credentials issued by VisionTradeFutures
    Connect on start up
    Off
    System
    Rithmic Paper Trading (Chicago)
    Plug-in mode
    Off

    The Username and Password are case-sensitive.

  5. Step 5

    Connect to VisionTradeFutures

    Open Connections again and click the connection name you just created. A green status indicator and the account appearing in NinjaTrader confirm the connection.

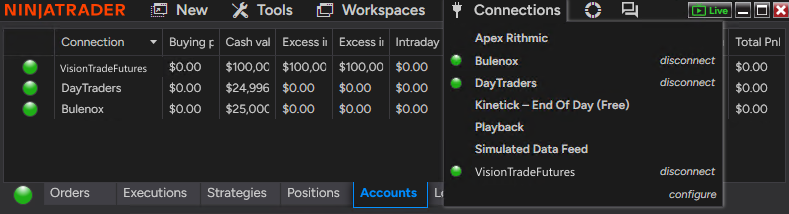

    Open Connections and click the name you created. This example uses VisionTradeFutures; the green indicator shows that it is connected.

Enlarged guide image
FAQ

VisionTradeFutures + NinjaTrader questions

Q Can I connect a VisionTradeFutures Rithmic account to NinjaTrader 8?

Yes. Install PropFirmConnector, select Rithmic Paper Trading (Chicago), and enter the active Rithmic credentials issued by VisionTradeFutures.

Q Which VisionTradeFutures credentials do I use?

Use the Rithmic username and password issued for the trading account, not the VisionTradeFutures website login or your NinjaTrader account credentials.

Q Can I run multiple VisionTradeFutures Rithmic logins in one NinjaTrader instance?

Yes. PropFirmConnector can connect multiple separate Rithmic logins in one NinjaTrader instance, including accounts from other prop firms.

Q Is PropFirmConnector affiliated with VisionTradeFutures?

No. PropFirmConnector is an independent NinjaTrader add-on and is not affiliated with or endorsed by VisionTradeFutures, NinjaTrader, or Rithmic.
